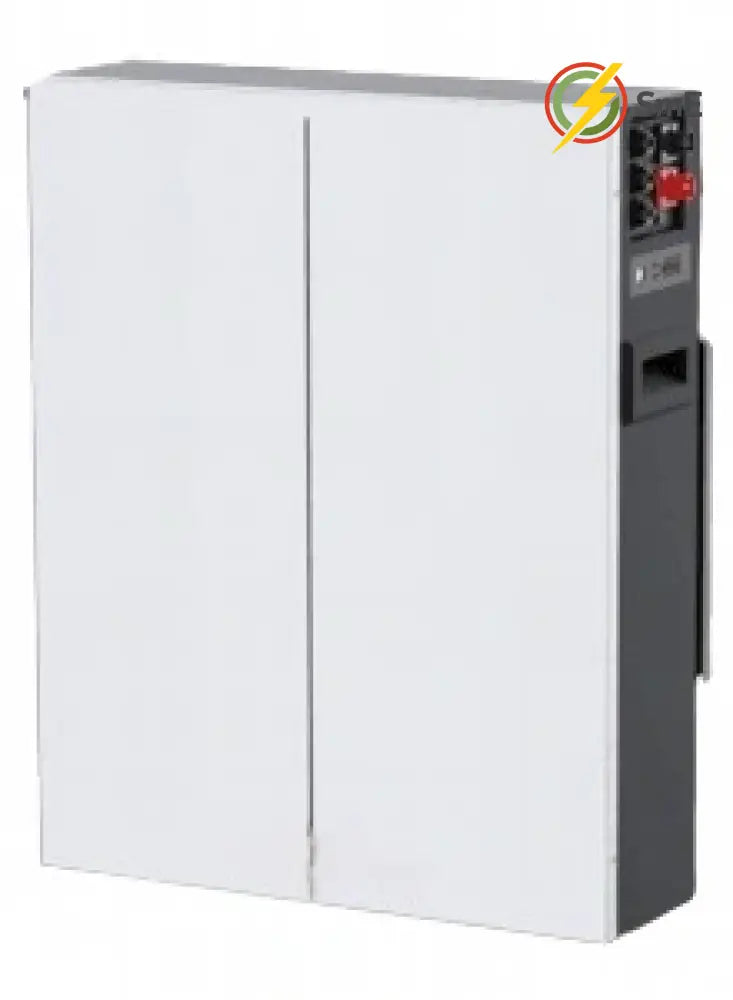

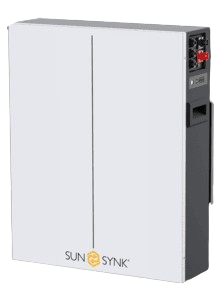

Sunsynk X-Series 5.12kWh 51.2V Battery

The X-Series lithium-ion phosphate 5.12kWh battery is one of the new energy storage products developed and produced by SUNSYNK. It is especially suitable for application scenarios of high power, limited installation space, and long cycle life. It can be used to support reliable power for various types of equipment and systems.

Product Features

• Sunsynk 5.12kWh 51.2V 100Ah X-series  Li-Ion battery.
• 95% Depth of Discharge with usable capacity of up to 4.864kWh.
• 1C discharge rating.
• Parallel capability of up to 8 units delivering 40.96kWh.
• 6000 cycles.
• IP65 rating ideal for outdoor applications.
• Wall mount design.
• Battery management system (BMS) with protection functions, including over-discharge, over-charge, over-current, and high/low temperature.
• 10 years product warranty.

• Weight:

  46 kg

  Battery Type:

  Lithium Ion

  Nominal Energy:

  5120 Wh

  Depth of discharge:

  95.00 %

  Voltage:

  48 V

  Continuous Discharge Rate (Normal Use):

  5120 W

  Maximum Discharge Rate (5 Minutes):

  5120 W

  Surge Discharge Rate (15 Seconds):

  7680 W

  Maximum Charge Rate (5 Minutes):

  2560 W
