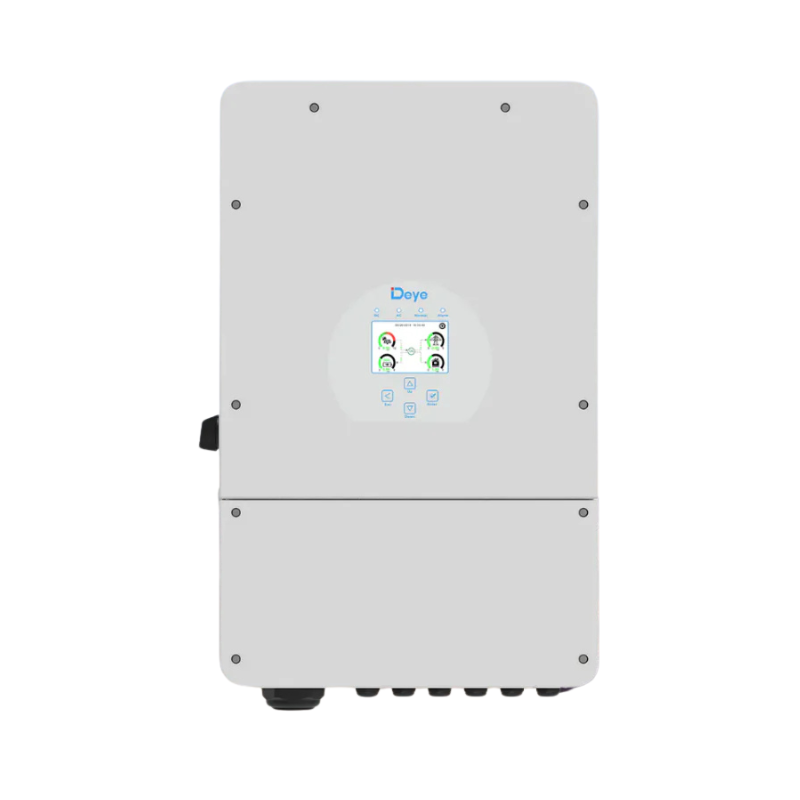

Deye 12KW Single Phase Hybrid Inverter 48V

A high-output hybrid inverter suited for large residential homes and small commercial properties. Supports both on-grid and off-grid operation, with the ability to parallel up to 16 units for scalable backup power. Ideal for properties with heavy loads including air conditioning, pool pumps, and multiple appliances.

Compatible Batteries

LiFePO4 lithium batteries with BMS communication via CAN or RS485 — including Hubble Lithium, Volta, Felicity Solar, and other Deye-compatible 48V lithium packs
Lead-Acid batteries (48V system)
Supports multiple batteries in parallel | Max charge/discharge: 290A
Charging strategy: Self-adaption to BMS for lithium batteries

Solar (PV) Input

3 x MPPT trackers | 2 strings per tracker
Max DC input: 19,200W | Max DC voltage: 500VDC
Rated PV input voltage: 370VDC | Startup voltage: 125VDC
PV input current: 26A + 26A + 26A

AC Output

Rated AC output: 12,000W | Max AC output: 13,200W
AC output current: 54.5A / 52.2A | Max AC current: 60A / 57.4A
Max efficiency: 97.60%
Grid type: Single Phase | Output: 220/230VAC, 50/60Hz

Key Features

Colourful touch LCD display | IP65 protection
AC coupling to retrofit existing solar systems
6 programmable time periods for charge/discharge
Time-of-Use (TOU) and Smart-Load functions
Generator compatible — stores energy from diesel generator
Wi-Fi monitoring included
Programmable supply priority: battery or grid
Overload, over-temperature, and short-circuit protection

Dimensions & Weight

Weight: 52 kg | Dimensions: 76.3 × 46.4 × 28.2 cm
Mounting: Wall mount

What's in the Box

1 × Deye 12KW Hybrid Inverter
1 × User Manual

Delivery & Installation

🚚 Nationwide delivery across South Africa — all major cities and towns
⏱ Estimated delivery: 3–5 business days after dispatch
🔧 Professional installation available in select areas — contact us to confirm availability in your area
Installation must be carried out by a qualified electrical wireman or Master Electrician (required for warranty validity)

Warranty — 5 Years

All inverters must be installed by a qualified electrical wireman or Master Electrician registered with the Department of Labour. A valid Electrical Certificate of Compliance (COC) specific to the backup/solar installation is required. Warranty claims submitted without installation photos, a valid COC, and proof of a qualified installer will be rejected and render the warranty null and void.
