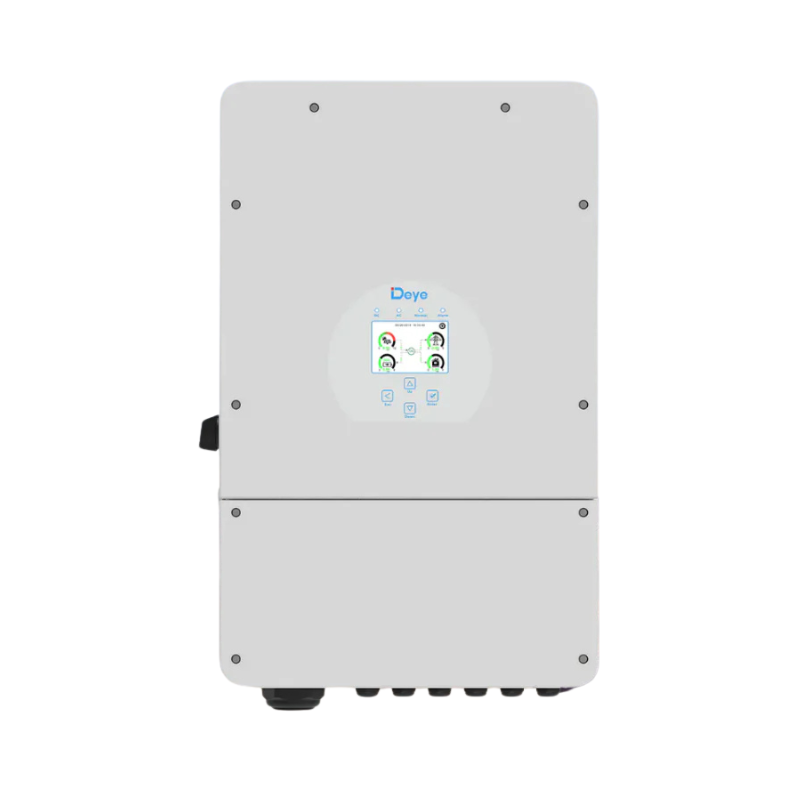

Deye 10KW 48V Single Phase Hybrid Inverter

Deye 10KW 48V Single Phase Hybrid Inverter

• Colorful touch LCD, IP65 protection degree

• AC couple to retrofit existing solar system

• Max. 16 pcs parallel for on-grid and off-grid

  operation; Support multiple batteries parallel

• Max. charging/discharging current of 250A

• 6 time periods for battery charging/discharging

• Support storing energy from diesel generator

Package Dimensions: 855 × 700 × 340 mm
Weight: 35.6KG

Battery Input Data

• Battery Type: Lead-acid or Li-lon

• Battery Voltage Range (V): 40-60V

• Max. Charging Current (A): 220A

• Max. Discharging Current (A): 220A

• Charging Strategy for Li-ion Battery: Self-adaption to BMS

• External Temperature Sensor: Optional

• Number of battery input: 1

What’s in the box?

• 1 x Inverter

• 1 x User Manual

5 -Year Warranty

Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system.  Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
