6KW MPPT Growatt Dyness 5.12 Lithium Battery Combo Backup Power Kit

Hybrid Inverter Solar Kit Combo

6KW MPPT Growatt Dyness 5.12 Lithium Battery Combo Backup Power Kit

INVERTER SPECIFICATIONS:

Features:

· Plug-and-Play terminal for PV port
· Dual MPP trackers
· Maximum PV input voltage up to 500VDC
· Configurable grid or solar input priority
· Parallel for scalability
· Dust-proof filter for harsh environment
· Two AC input terminals with integrated
 transfer switch

WIFI Dongle (INCLUDED)

Inverter Output:

• Battery Voltage: 48VDC

• Battery Type: Lithium/Lead-Acid

• Rated Power: 6000VA/6000W

• Parallel Capability: Yes, 6 units maximum

• Surge Power: 12000VA

• Waveform: Pure Sine Wave

• Transfer Time: 10ms typical, 20ms Max

Solar Charger:

• Maximum PV Array Power: 8000W

• MPPT Range @ Operating Voltage: 120VDC – 450VDC

• Max. Input current per MPP tracker: 16A

• Maximum Solar Charger Current: 100A

• Number of Independent MPP Trackers/
  Strings Per MPP Tracker : 2/1

AC Charger:

• Charge Current: 80A

• AC Input Voltage: 230VAC

• Selectable Voltage Range: 170-280 VAC (For personal Computers) ; 90-280 VAC (For Home Applications)

• Wifi Dongle Included

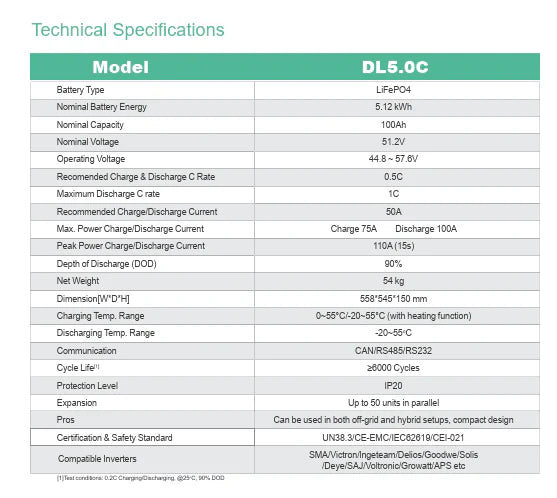

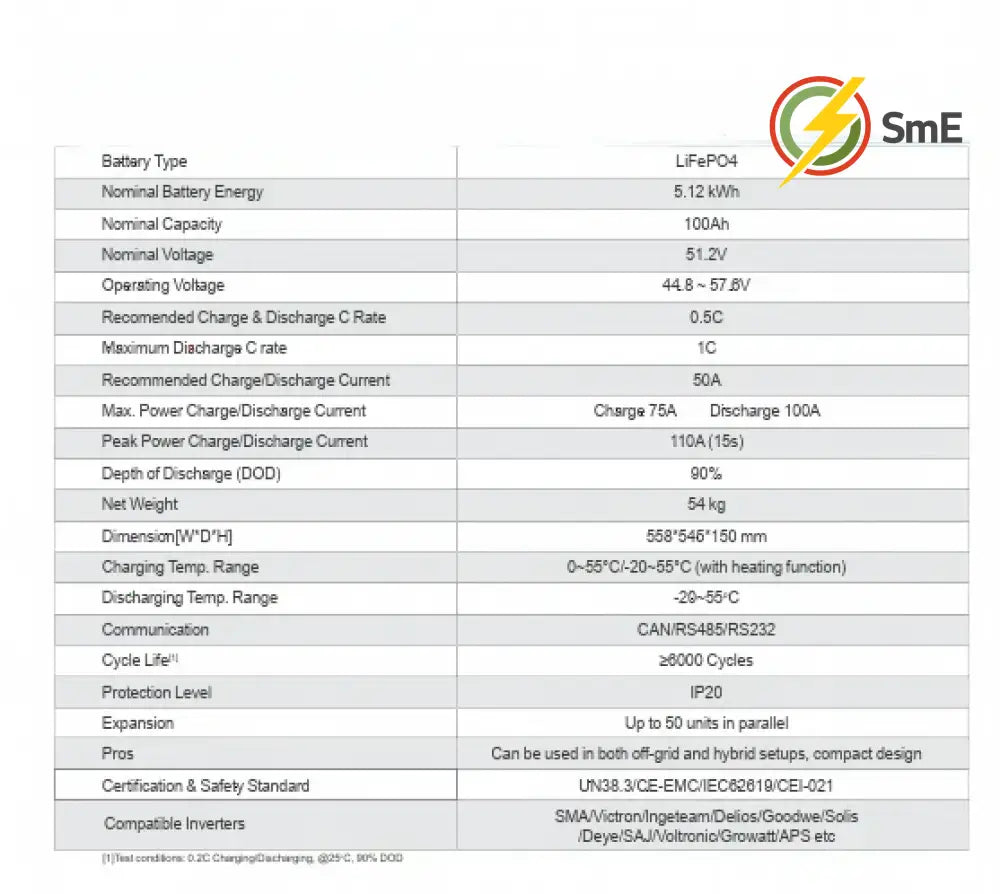

Battery Specifications:

DYNESS Lithium Battery DL5.0C 5.12 kWh 51.2v

DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring, and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.

 Combo includes:

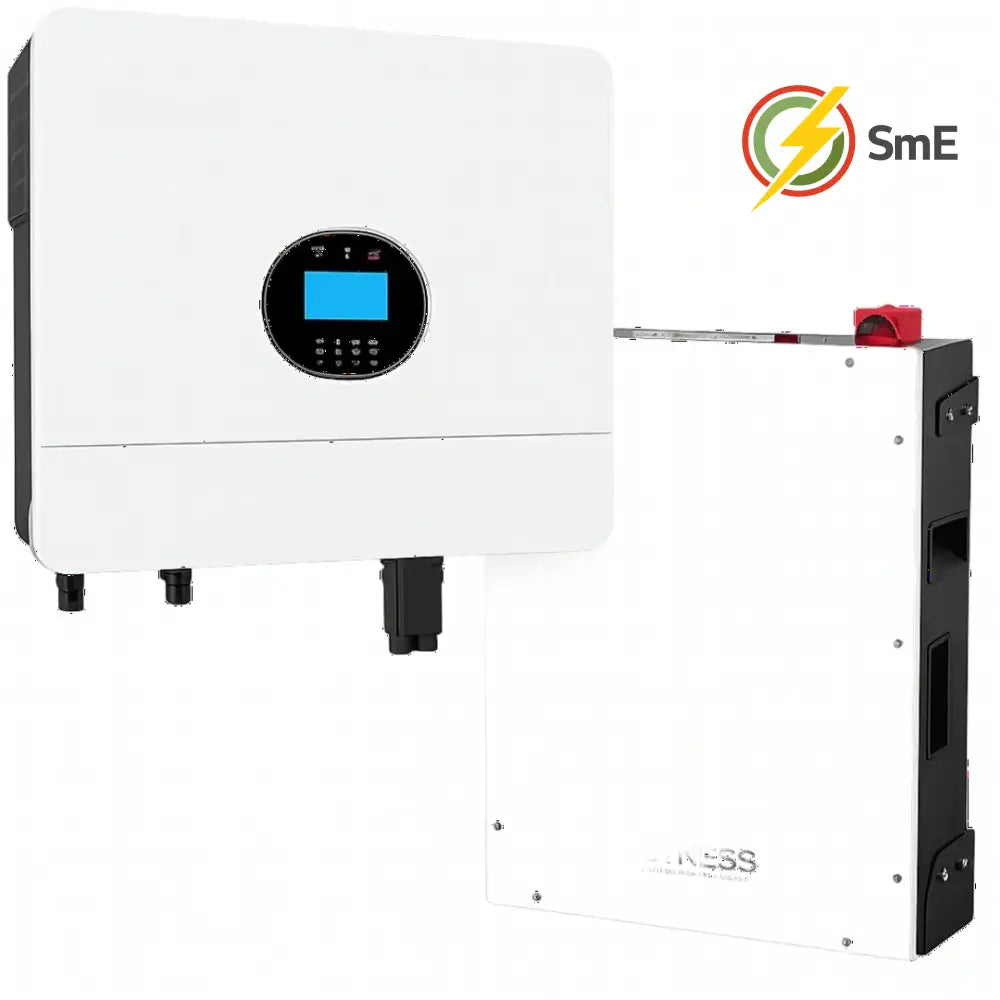

• 1x Growatt Off-Grid Solar Inverter 6kW 48VDC SPF6000ES  (2 Years Warranty)

• Growatt Wifi Dongle

• 1x Dyness 5.12 Battery DL5.0C 5.12 kWh 51.2v Version 2(7 Years Warranty)

• Battery cables included
