HYBRID INVERTER SOLAR KIT COMBO

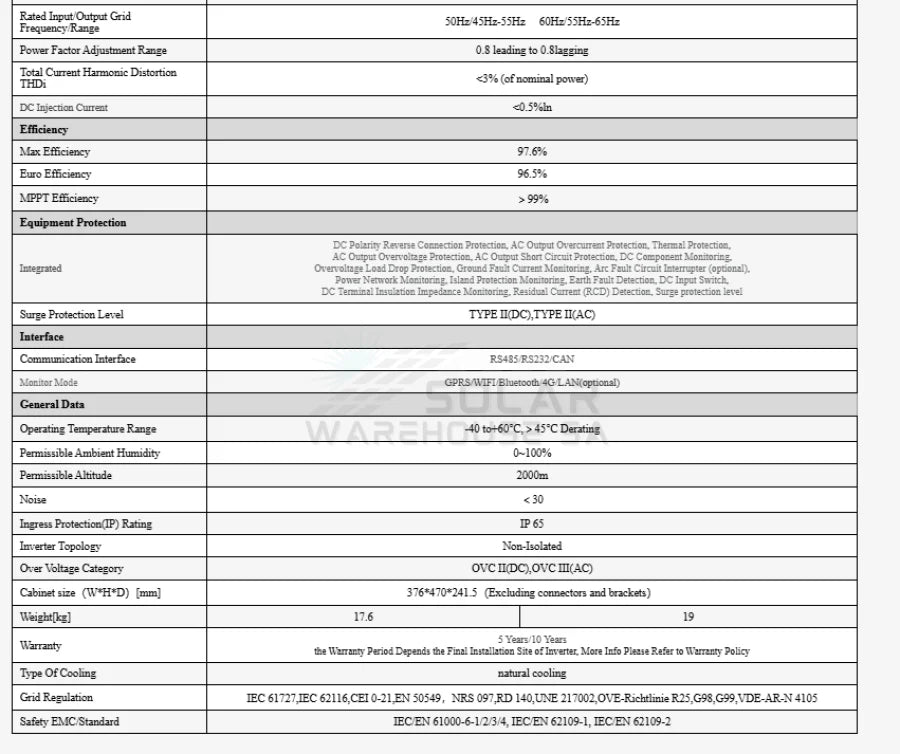

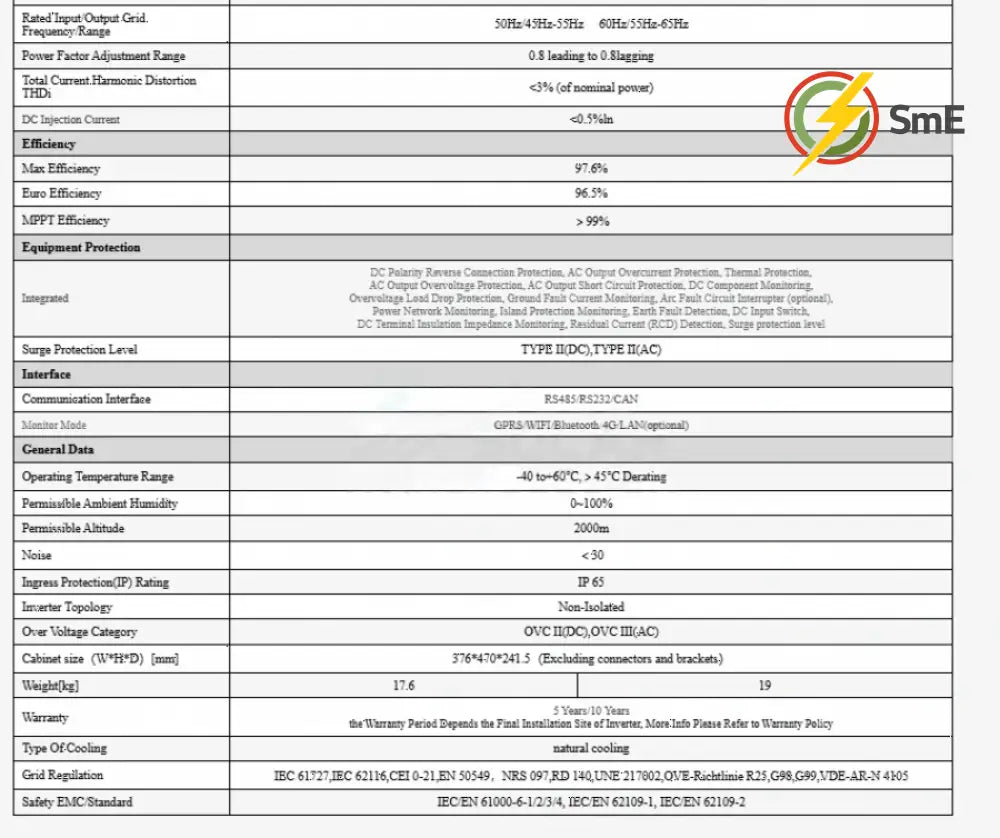

Inverter Specifications:

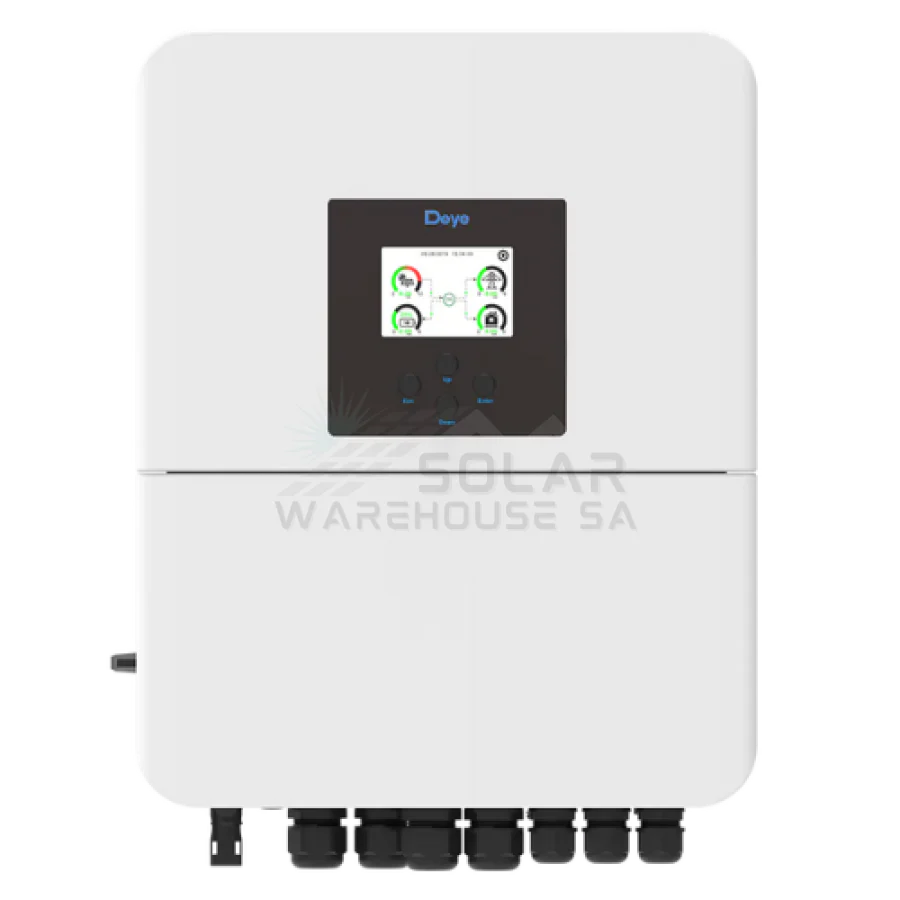

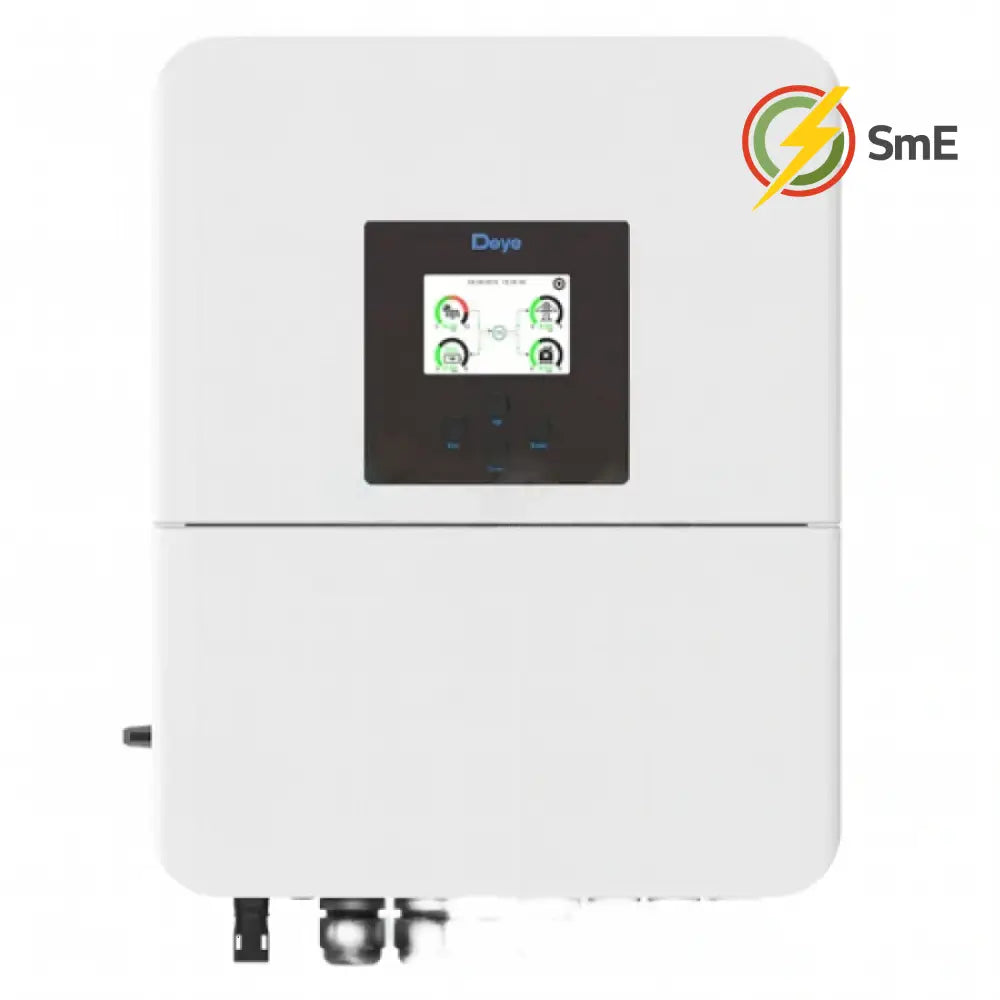

Deye 5kw hybrid inverter (SUN-5K-SG04LP1-EU-SM2)
Colorful touch LCD, IP65 protection degree AC couple to retrofit existing solar system Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 140A 6 time periods for battery charging/discharging Support storing energy from diesel generator
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range(V): 40-60
Max.Charging Current(A): 120
Max.Discharging Current(A): 120
Charging Strategy for Li-ion Battery: Self-adaption to BMS

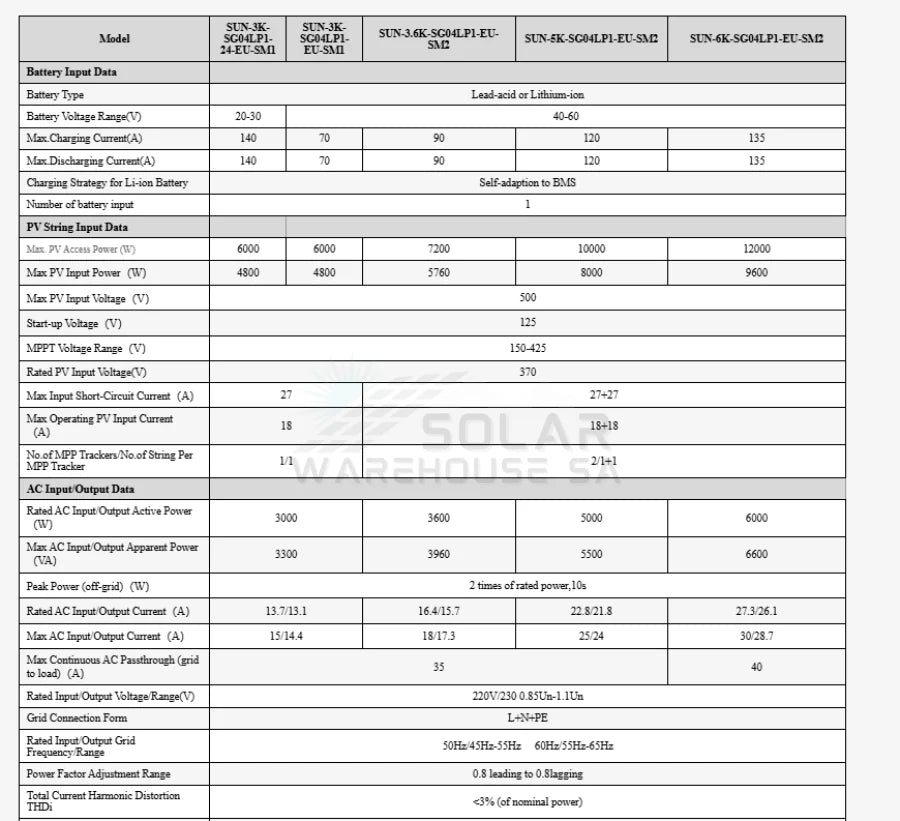

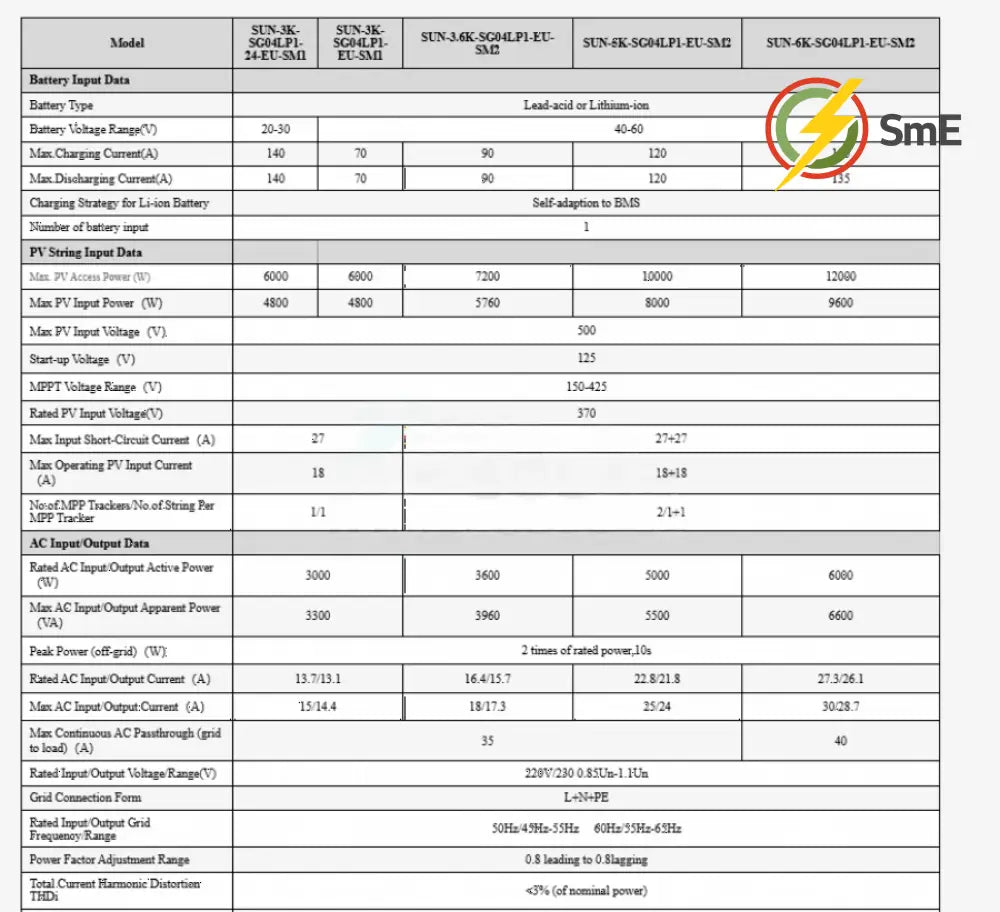

PV String Input Data
Max. PV Access Power (W):10000
Max PV Input Power（W）: 8000
Max PV Input Voltage（V): 500
Start-up Voltage（V）: 125
MPPT Voltage Range（V）: 150-425
Rated PV Input Voltage(V): 370
Max Input Short-Circuit Current（A）: 27+27
Max Operating PV Input Current（A）: 18+18
No.of MPP Trackers/No.of String Per MPP Tracker: 2/1+1
Height (mm) |
470 |
Width (mm) |
376 |
Depth (mm) |
241.5 |
Weight (kg) |
19 |
Battery Specifications:

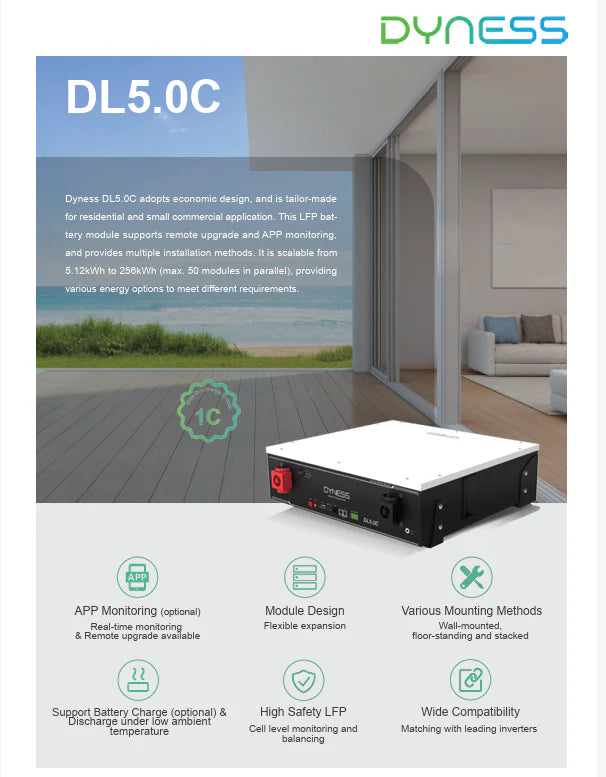

DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring,and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.
Battery Type |
LiFePO4 |
Nominal Battery Energy |
5.12 kWh |
Nominal Capacity |
100Ah |
Nominal Voltage |
51.2V |
Operating Voltage |
44.8 ~ 57.6V |
Recomended Charge & Discharge C Rate |
0.5C |
Maximum Discharge C rate |
1C |
Recommended Charge/Discharge Current |
50A |
Max Continous Charge Current |
75A |
Max Continous Discharge Current |
100A |
Peak Power Charge/Discharge Current |
110A (15s) |
Depth of Discharge (DOD) |
90% |
Net Weight |
54 kg |
Dimension[W*D*H] |
558*545*150 mm |
Charging Temp. Range |
0~55℃ |
Discharging Temp. Range |
-20~55℃ |
Communication |
CAN/RS485/RS232 |
Cycle Life[1] |
≥6000 Cycles |
Protection Level |
lP20 |
Expansion |
up to 50 units in parallel |
Pros |
Can be used in both off-grid and hybrid setups, compact design |
Certification & Safety Standard |
UN38.3/CE-EMC/IEC62619/CEI-021 all undergoing |

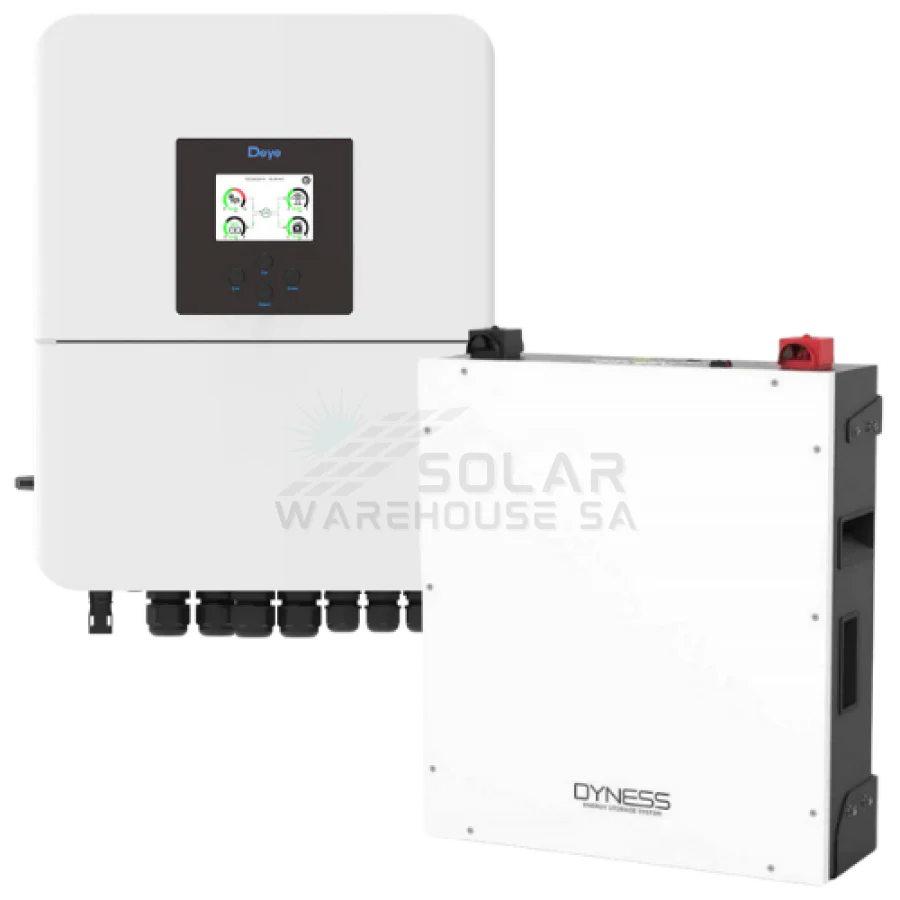

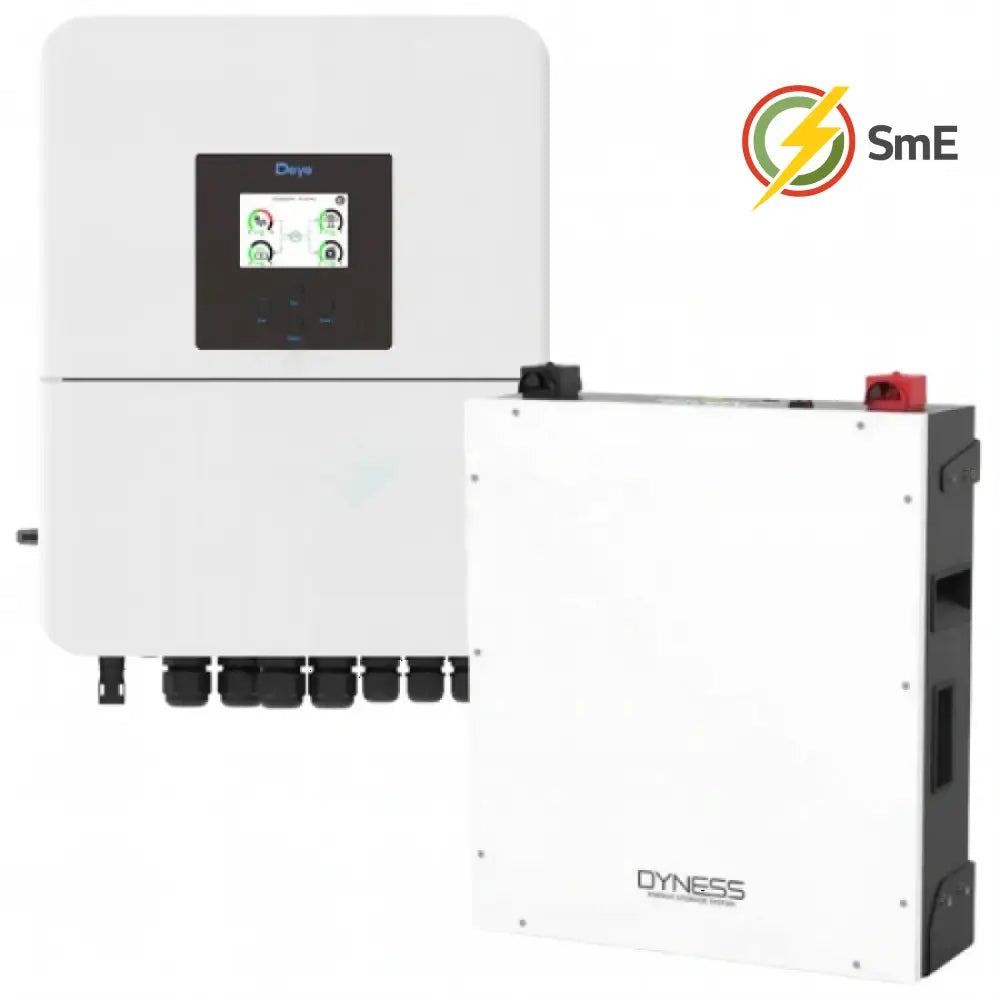

Combo includes:
1x Deye 5kwh Hybrid Inverter Including Wifi Dongle
(5 Years Warranty)DYNESS Lithium Battery DL5.0C 5.12 kWh 51.2v Version 2 (7 Years Warranty)
Battery cables and brackets included
