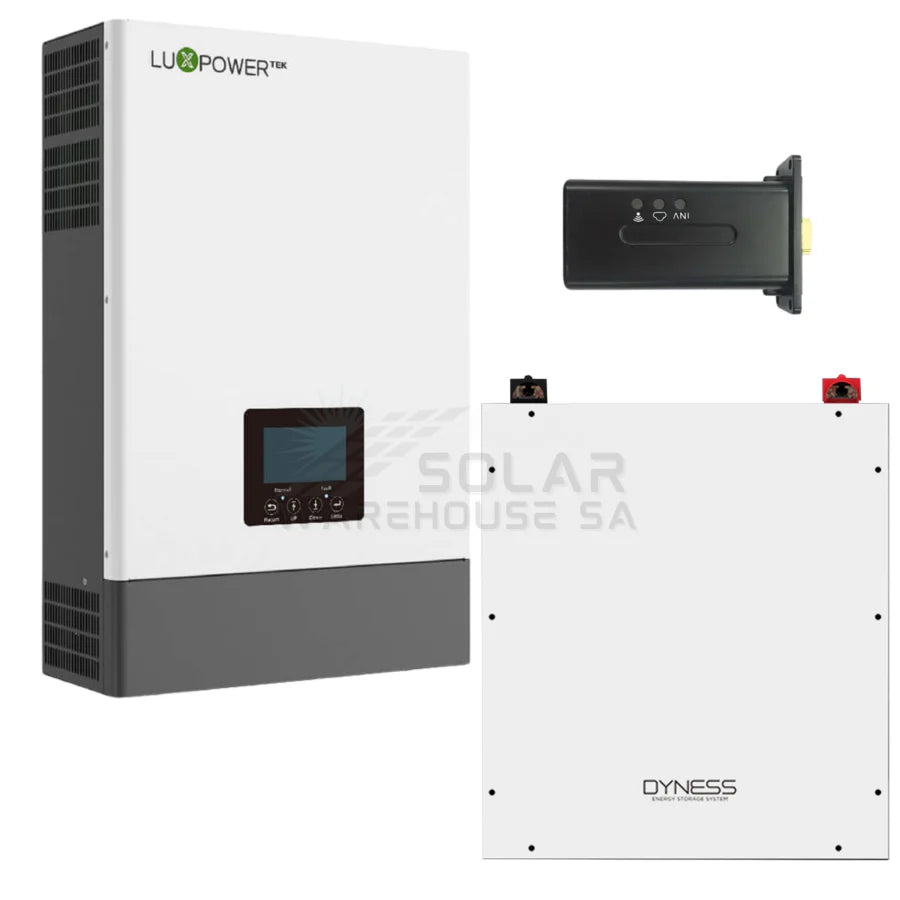

5KVA MPPT Luxpower Load Shedding Dyness 5.12 KWh Combo Backup Power Kit

Hybrid Inverter Solar Kit Combo

5KVA MPPT Luxpower Load Shedding Dyness 5.12 KWh Combo Backup Power Kit

Overcome load shedding with this premium hybrid inverter load-shedding Combo

INVERTER SPECIFICATIONS:

Luxpower SNA5000 5kW Off-Grid Inverter+Wifi Dongle

General:
Model: SNA 5000 WPV
Warranty: 2years.
Battery voltage: 48VDC.

Output:
Rated power: 5000W/5000VA.
Parallel capacity: YES.
Normal output voltage: 230/240, Split phase 220/110 Vac.
Normal output frequency: 50/60Hz.
Surge power: 10000VA.
Switch time: 10ms.
Waveform: Pure sine wave.

Battery:
Battery Type: Lithium/Lead-Acid.
Normal Voltage: 51.2V/48V.
Max. Charge Voltage: 59V.

Solar:
Max. Recommended PV Power: 3200W/3200W.
MPPT Tracker: 2.
Max. PV Open Circuit Voltage: 480Vdc.
MPPT Voltage Range: 100-385Vdc.
Max. Solar Charge Current: 100A.
Max. Solar Input Current: 13A/13A.
Max. MPPT Eiciency: >98%.
Parallel MPPT Charger: YES.

What's in the box

1 x Inverter
1 x User Manual
1 x Wifi Dongle

Battery Specifications:

• DYNESS DL5.0C adopts economic design, and is tailor-made for residential & small commercial application. This LFP battery module supports remote update and APP monitoring,and provides multiple installation methods. It is scalable from 5.12 -256 kWh (max. 50 modules in parallel), providing various energy storage options to meet different requirements.

  Battery Type	LiFePO4
  Nominal Battery Energy	5.12 kWh
  Nominal Capacity	100Ah
  Nominal Voltage	51.2V
  Operating Voltage	44.8 ~ 57.6V
  Recomended Charge & Discharge C Rate	0.5C
  Maximum Discharge C rate	1C
  Recommended Charge/Discharge Current	50A
  Max Continous Charge Current	75A
  Max Continous Discharge Current	100A
  Peak Power Charge/Discharge Current	110A (15s)
  Depth of Discharge (DOD)	90%
  Net Weight	54 kg
  Dimension[W*D*H]	558*545*150 mm
  Charging Temp. Range	0~55℃
  Discharging Temp. Range	-20~55℃
  Communication	CAN/RS485/RS232
  Cycle Life[1]	≥6000 Cycles
  Protection Level	lP20
  Expansion	up to 50 units in parallel
  Pros	Can be used in both off-grid and hybrid setups, compact design
  Certification & Safety Standard	UN38.3/CE-EMC/IEC62619/CEI-021 all undergoing

 Combo includes:

• 1x DYNESS Lithium Battery DL5.0C 5.12 kWh 51.2v Version 2 (7-year warranty)

• 1x Luxpower 5kw + Wifi Dongle Inverter (2 year warranty)

• Battery Cables And Brackets Included

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void
